典型案例

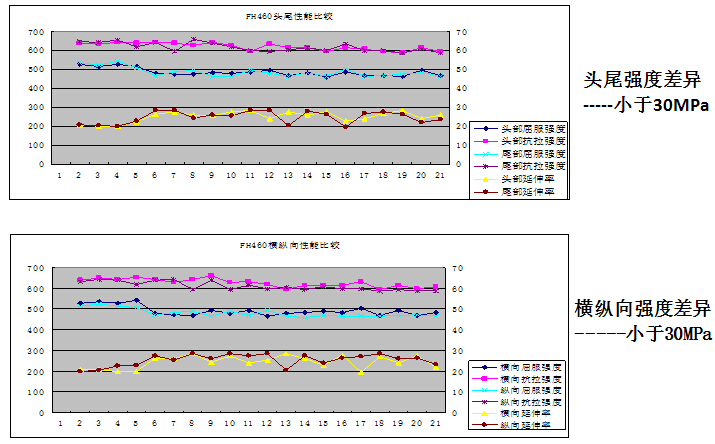

典型鋼種鋼板性能均勻性(FH460)
典型鋼種的機械性能
|
鋼牌號
|
厚度mm
|
厚度方向位置
|
ReH Mpa
|
Rm
Mpa
|
A
%
|
Temp℃
|
Akv，J
平均
|
Ψz ，%
平均
|
|
E
|
100
|
1/2t
|
320
|
435
|
34.5
|
-40
|
271
|
80.8
|
|
1/4t
|
290
|
430
|
38.5
|
-40
|
290
|
|
FH40
|
100
|
1/2t
|
410
|
530
|
26.5
|
-60
|
233
|
79.5
|
|
1/4t
|
425
|
545
|
30
|
-60
|
233
|
|
FH460
|
80
|
1/2t
|
490
|
615
|
23
|
-60
|
228
|
80.7
|
|
1/4t
|
485
|
615
|
26
|
-60
|
205
|
|
FH550
|
50
|
1/2t
|
580
|
700
|
22.5
|
-60
|
369
|
74.2
|
|
1/4t
|
590
|
705
|
25.5
|
-60
|
360
|
|
80
|
1/2t
|
590
|
715
|
23.5
|
-60
|
285
|
74.2
|
|
1/4t
|
590
|
720
|
25
|
-60
|
342
|
典型鋼種的焊接評定（FH690）
|
線能量
|
狀態
|
熔合線
|
距熔合線2mm
|
距熔合線5mm
|
距熔合線20mm
|
|
AkV（J）
|
纖維率%
|
側膨脹mm
|
AkV（J）
|
纖維率%
|
側膨脹mm
|
AkV（J）
|
纖維率%
|
側膨脹mm
|
AkV（J）
|
纖維率%
|
側膨脹mm
|
|
低
|
焊態
|
185
|
100
|
1.86
|
332
|
100
|
2.4
|
420
|
100
|
2.2
|
360
|
100
|
2.52
|
|
176
|
100
|
1.58
|
365
|
100
|
2.48
|
412
|
100
|
2.18
|
322
|
100
|
2.12
|
|
169
|
100
|
2.04
|
381
|
100
|
2.62
|
423
|
100
|
2.04
|
353
|
100
|
1.98
|
|
消應態
|
182
|
100
|
2.36
|
330
|
100
|
1.5
|
330
|
100
|
2.24
|
352
|
100
|
2.05
|
|
146
|
100
|
2.2
|
346
|
100
|
2.53
|
320
|
100
|
1.7
|
346
|
100
|
2.4
|
|
178
|
100
|
1.8
|
411
|
100
|
2.62
|
335
|
100
|
2.61
|
330
|
100
|
1.87
|
|
高
|
焊態
|
212
|
100
|
2.18
|
326
|
100
|
2.37
|
396
|
100
|
2.2
|
349
|
100
|
1.4
|
|
222
|
100
|
2.64
|
359
|
100
|
1.96
|
356
|
100
|
1.92
|
330
|
100
|
2.47
|
|
208
|
100
|
1.9
|
382
|
100
|
2.21
|
329
|
100
|
2.23
|
353
|
100
|
2.23
|
|
消應態
|
216
|
100
|
2.38
|
368
|
100
|
2.56
|
368
|
100
|
2.08
|
326
|
100
|
2.42
|
|
202
|
100
|
2.46
|
460
|
100
|
2.18
|
383
|
100
|
2.21
|
324
|
100
|
2.06
|
|
205
|
100
|
2.81
|
459
|
100
|
2.38
|
356
|
100
|
2.06
|
328
|
100
|
2.29
|
鞍鋼海工鋼供貨業績
|
序號
|
型號
|
日期
|
制造商
|
所有者
|
備注
|
|
1
|
JU2000E Jack-up
|
2006-2012
|
Dalian shipyard
|
COSL/Noble/ Sino-Tharwa
Seadrill / POD
|
11000T*8
|
|
2
|
L780 Jack-up
|
2008-2009
|
Dalian shipyard
|
COSL
|
4000T*3
|
|
3
|
MSC CJ46 Jack-up
|
2009
|
Dalian shipyard
|
COSL
|
5700T*3
|
|
4
|
DSJ-300 Jack-up
|
2009-2011
|
Dalian shipyard
|
COSCO
|
5450T*1
|
|
5
|
JU2000E Jack-up
|
2010-2011
|
Dalian shipyard
|
Bassdrill Beta Ltd.
|
7600T*2
|
|
6
|
Bingo-9000 SEMI
|
2008-2010
|
Dalian shipyard
|
|
|
|
7
|
NDB SEMI
|
2009-2010
|
Dalian shipyard
|
COSL
|
|
|
8
|
INNOVATOR SEMI
|
2008-2012
|
CIMC RAFFLES
|
COSL/Schahin
|
6600T*7
|
|
9
|
Super M2 Jack-up
|
2010-2013
|
CIMC RAFFLES
|
|
|
|
10
|
JU2000E Jack-up
|
2010-2013
|
CIMC RAFFLES
|
COSL
|
12000T*2
|
|
11
|
Super M2 Jack-up
|
2009-2010
|
CIMC RAFFLES
|
REMEDIAL US
|
|
|
12
|
DSJ300-L1 Jack-up
|
2012-2014
|
LIAO HE SHIYOU
|
COSL
|
EH36,N,1000T
|
|
13
|
CP400-1 Jack-up
|
2012-2014
|
LIAO HE SHIYOU
|
COSL
|
AH36,DH36,EH36,N,2000T
|
|
14
|
CP400-2 Jack-up
|
2012-2014
|
COSCO-SHIPYARD
|
COSCO
|
EQ51,EQ63,EQ70,TMCP
|
|
| |
